Delphi 11 – Firebase Cloud Messaging ( FCM ) – iOS app Push Notification

Digital solution partner

Delphi 11 – Firebase Cloud Messaging ( FCM ) – iOS app Push Notification

0

Goals:

  • Integrate Firebase push notifications (FCM) into an app built with Delphi for iOS without the help of third-party libraries.
  • Having the same base code in the application and in the servers for managing pushes in Delphi the same as that used for Android.



Test environment used:

  • VM Delphi 11 Alexandria Ent. Edition on Windows 10 pro 64GB Ram
  • Xcode 13.2.1
  • Mac OS Menterey 12.0.1
  • iOS sdk iPhoneOS 14.5
  • Device test
    • iPad 10.2 myl92ty/a os. ver 14.3
    • iPhone 12 mini

Prerequisites:

  • IOS application operational on your devices in development
  • Firebase account and created project

Steps needed to associate notifications

  1. Configure the distribution of the app on the developer.apple.com portal and on https://appstoreconnect.apple.com/apps/ <appId>
  2. Add the management code on the Delphi application and import the firebase sdk for iOS

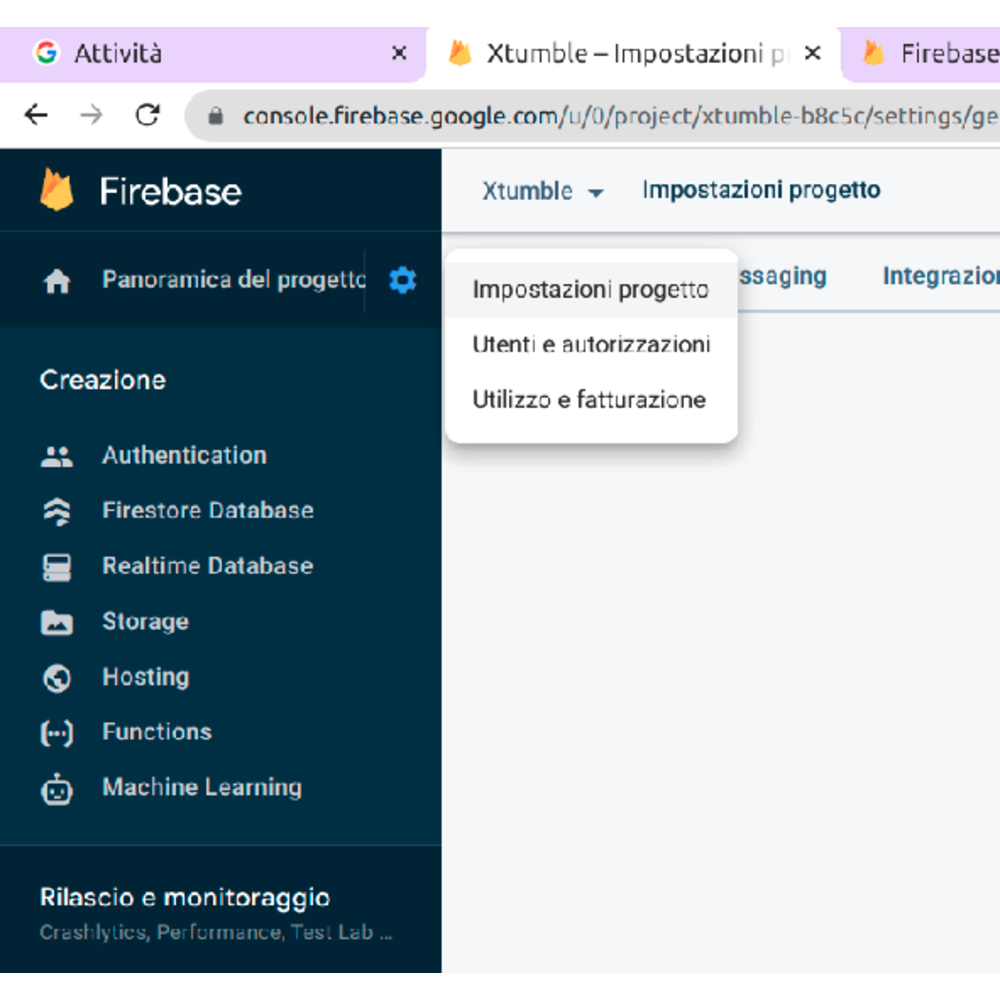

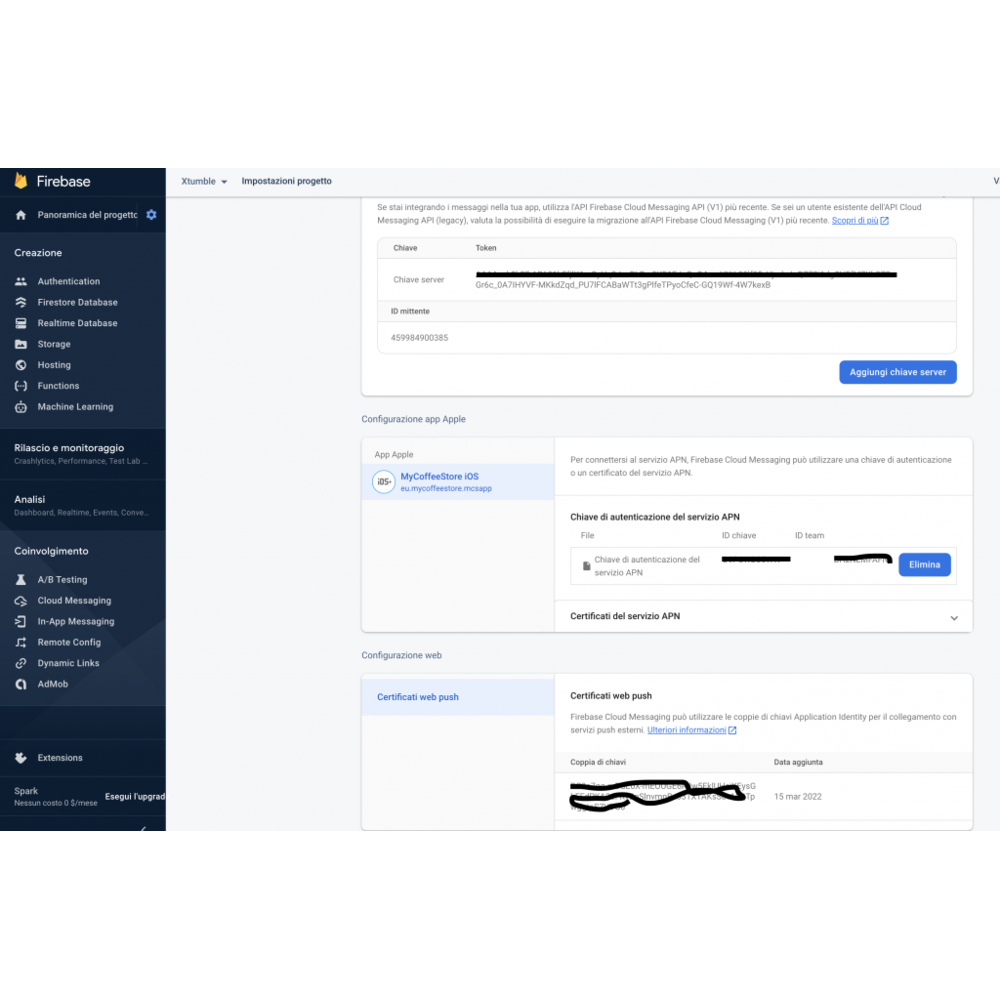

  3. Configure the project on firebase https://console.firebase.google.com/project/

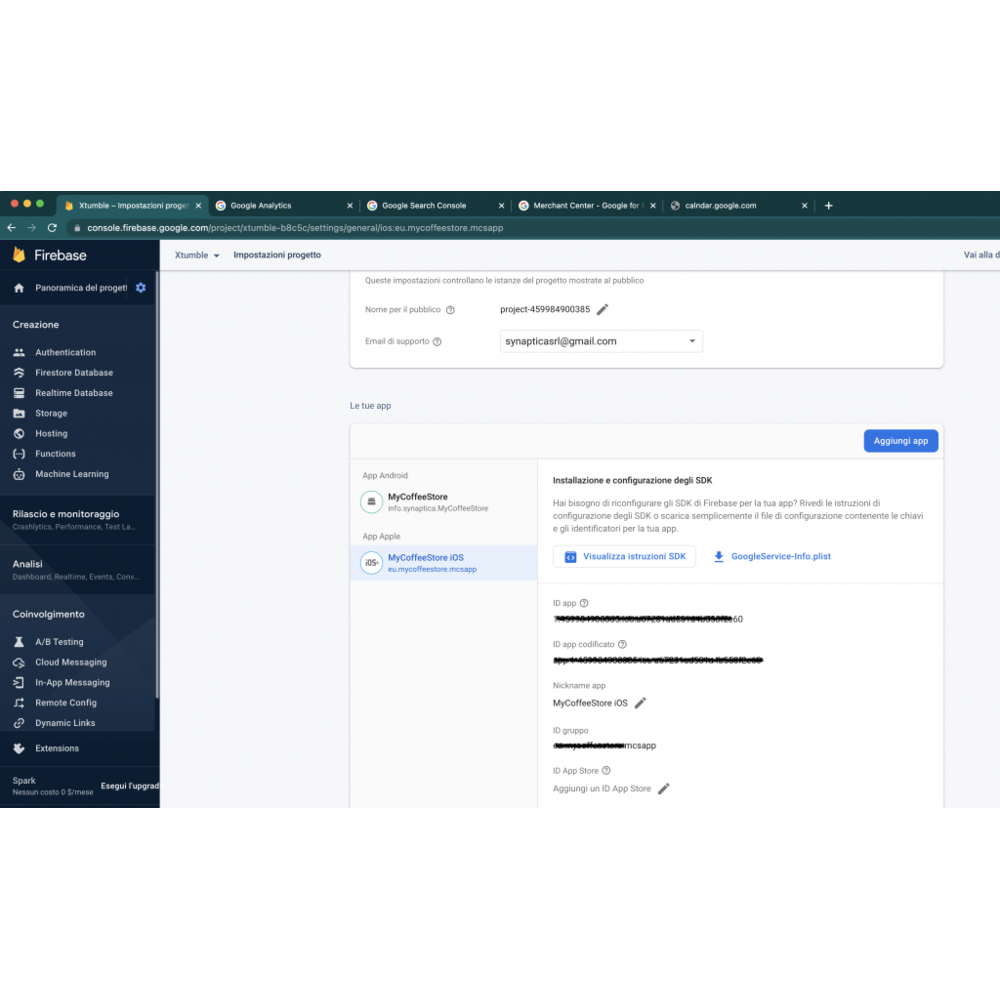

  4. Download the “GoogleService-Info.plist” file from firebase, copy it to the project directory and insert it in the distribution list (deploy)

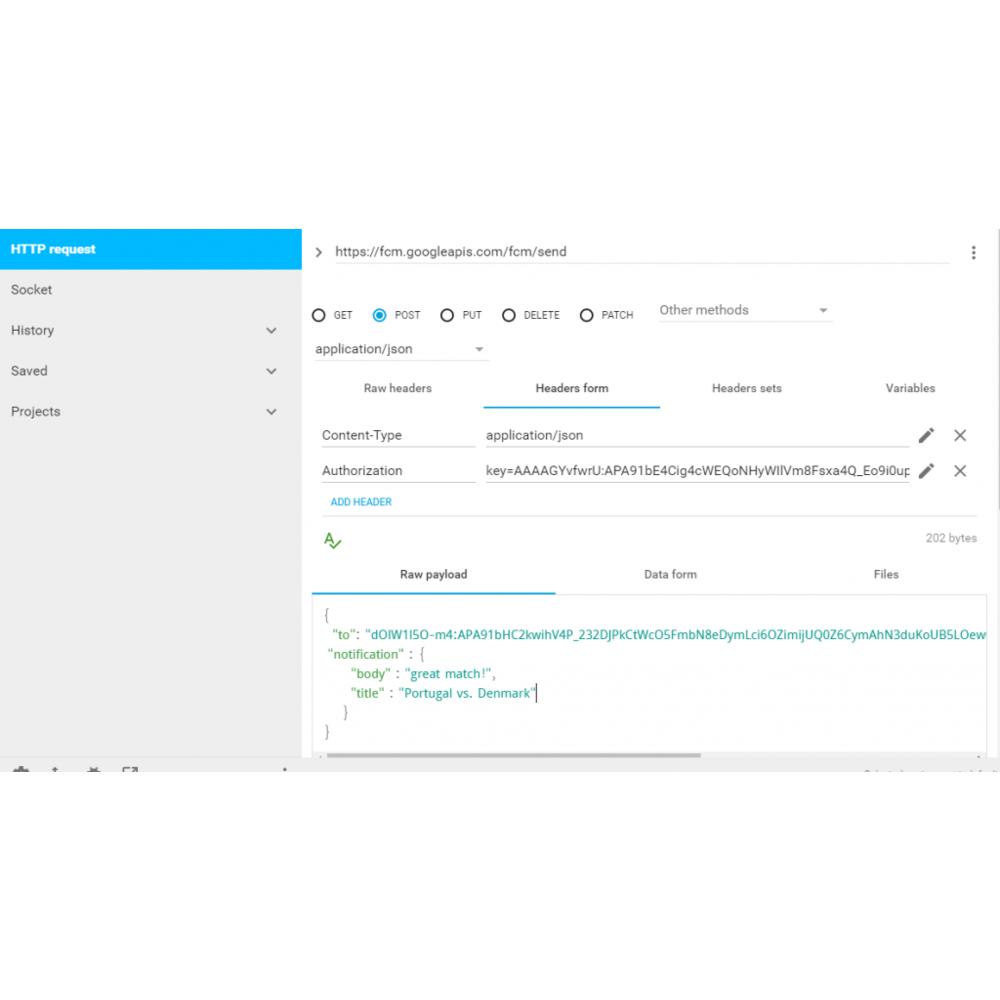

  5. Sending a test push message from the firebase console or your server

Step 1: Configure the distribution of the app on the developer.apple.com portal and on https://appstoreconnect.apple.com/apps/ <appId>

  • (apple portal) Configure the distribution of the app on the apple developer portal to receive pushes
    • create a certificate for push notifications
    • enable “Push Notifications” in the “Identifier” section and associate a certificate for the “Production SSL Certificate” push (mac keystore -> Keychain Access -> Certificate Assistant -> Request a certificate from a certification authority)
    • always in the “keys” section of your developers panel Create a key for pushes
    • (if not already done) create an app on “app Store Connect” (the “sku” code is your internal code (write us what you want, just remember it))
    • publish the app on the App Store Connect even without push support using the “Transporter” program

Step 2: Add the management code on the Delphi application and import the firebase sdk for iOS

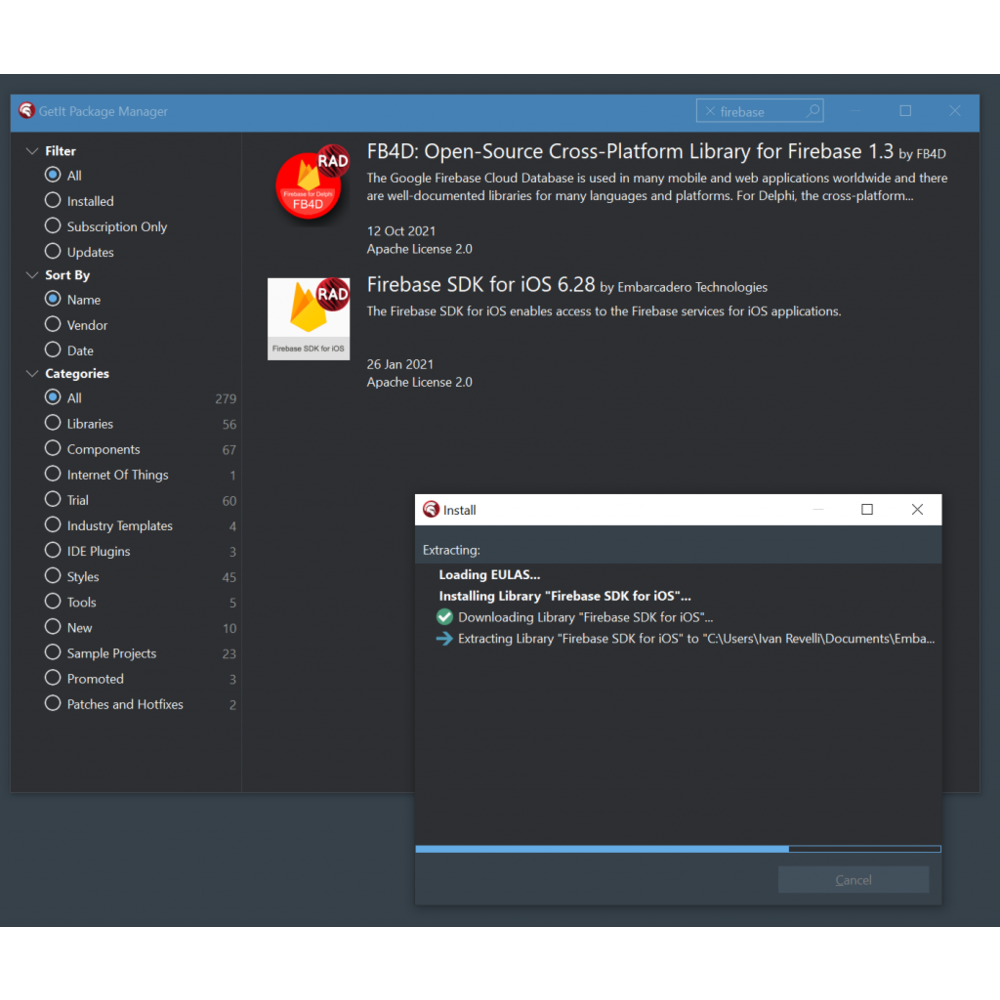

  • (delphi) Download the FCM SDK package from getit and unzip it in the proposed directory or choose a custom path
  • (delphi) Create an “environment variable” in which to define the base path of Friebase SDK for iOS (in my case C: \ Users \ <myusername> \ Documents \ Embarcadero \ Studio \ 22.0 \ CatalogRepository \ FirebaseSDKforiOS- 6.28 \ Firebase) and which I called “Firebase_6_28“
  • (delphi) Change the search path in the project options ( project –> options –> Delphi compiler –> search Path :
    • $(Firebase_6_28)\FirebaseAnalytics\nanopb.xcframework\ios-armv7_arm64\nanopb.framework;$(Firebase_6_28)\FirebaseAnalytics\GoogleUtilities.xcframework\ios-armv7_arm64\GoogleUtilities.framework;$(Firebase_6_28)\FirebaseAnalytics\GoogleDataTransport.xcframework\ios-armv7_arm64\GoogleDataTransport.framework;$(Firebase_6_28)\FirebaseAnalytics\GoogleAppMeasurement.framework;$(Firebase_6_28)\FirebaseAnalytics\FirebaseInstallations.xcframework\ios-armv7_arm64\FirebaseInstallations.framework;$(Firebase_6_28)\FirebaseAnalytics\FirebaseCoreDiagnostics.xcframework\ios-armv7_arm64\FirebaseCoreDiagnostics.framework;$(Firebase_6_28)\FirebaseAnalytics\FirebaseCore.xcframework\ios-armv7_arm64\FirebaseCore.framework;$(Firebase_6_28)\FirebaseAnalytics\FirebaseAnalytics.framework;$(Firebase_6_28)\FirebaseMessaging\FirebaseMessaging.xcframework\ios-armv7_arm64\FirebaseMessaging.framework;$(Firebase_6_28)\FirebaseMessaging\FirebaseInstanceID.xcframework\ios-armv7_arm64\FirebaseInstanceID.framework;$(Firebase_6_28)\FirebaseAnalytics\PromisesObjC.framework\ios-armv7_arm64\PromisesObjC.framework;$(Firebase_6_28)\FirebaseMLModelInterpreter\Protobuf.xcframework\ios-armv7_arm64\Protobuf.framework



  • (delphi) directive “-ObjC” to linker LD (project -> options -> Delphi Compiler -> Linking) to allow to include SDK methods
  • (delphi) copy the Delphi “iOSapi.FirebaseCommon.pas” file to your project folder ( C:\Program Files (x86)\Embarcadero\Studio\22.0\source\rtl\ios\iOSapi.FirebaseCommon.pas –> e:\progetti\myApp ) edit the file and write in it:
    • unit iOSapi.FirebaseCommon;

{*******************************************************}
{                                                       }
{            CodeGear Delphi Runtime Library            }
{                                                       }
{ Copyright(c) 2010-2021 Embarcadero Technologies, Inc. }
{                  All rights reserved                  }
{                                                       }
{*******************************************************}

interface

uses
  Macapi.ObjectiveC,
  iOSapi.CocoaTypes, iOSapi.Foundation;

const
  FIRInstanceIDErrorUnknown = 0;
  FIRInstanceIDErrorAuthentication = 1;
  FIRInstanceIDErrorNoAccess = 2;
  FIRInstanceIDErrorTimeout = 3;
  FIRInstanceIDErrorNetwork = 4;
  FIRInstanceIDErrorOperationInProgress = 5;
  FIRInstanceIDErrorInvalidRequest = 7;
  FIRInstanceIDAPNSTokenTypeUnknown = 0;
  FIRInstanceIDAPNSTokenTypeSandbox = 1;
  FIRInstanceIDAPNSTokenTypeProd = 2;

type
  FIRInstanceIDError = NSUInteger;

  FIRAppClass = interface(NSObjectClass)
    ['{B8962096-555F-498E-B102-8EC66E871EF2}']
    {class} procedure configure; cdecl;
  end;

  FIRApp = interface(NSObject)
    ['{FFF4B247-25C6-47B8-BBC5-893D2170EFA5}']
  end;
  TFIRApp = class(TOCGenericImport<FIRAppClass, FIRApp>) end;

  FIRInstanceIDClass = interface(NSObjectClass)
    ['{4A9F1C85-AEDE-4284-A7DC-0EF9111504B1}']
    {class} function instanceID: pointer; cdecl;
  end;

  FIRInstanceID = interface(NSObject)
    ['{2967A1F9-98F5-40E6-8BDA-A25D3C699ED3}']
    function token: NSString; cdecl;
  end;
  TFIRInstanceID = class(TOCGenericImport<FIRInstanceIDClass, FIRInstanceID>) end;

implementation

uses
  System.Sqlite, System.ZLib,
  iOSapi.StoreKit;

const
  libSystemConfiguration = '/System/Library/Frameworks/SystemConfiguration.framework/SystemConfiguration';

procedure ClangRTLoader; cdecl; external '/usr/lib/clang/lib/darwin/libclang_rt.ios.a';
procedure FirebaseAnalyticsLoader; cdecl; external  'FirebaseAnalytics';
procedure FirebaseCoreLoader; cdecl; external  'FirebaseCore';
procedure FirebaseCoreDiagnosticsLoader; cdecl; external  'FirebaseCoreDiagnostics';
procedure FirebaseInstallationsLoader; cdecl; external  'FirebaseInstallations';
procedure FoundationLoader; cdecl; external {$IFDEF IOS32}libFoundation{$ELSE}framework 'Foundation'{$ENDIF};
procedure GoogleAppMeasurementLoader; cdecl; external  'GoogleAppMeasurement';
procedure GoogleDataTransportLoader; cdecl; external  'GoogleDataTransport';
procedure GoogleUtilitiesLoader; cdecl; external 'GoogleUtilities';
procedure nanopbLoader; cdecl; external 'nanopb';
procedure PromisesObjCLoader; cdecl; external 'PromisesObjC';
//procedure PromisesObjCLoader; cdecl; external 'PromisesObjC';
procedure SystemConfigurationLoader; cdecl; external {$IFDEF IOS32}libSystemConfiguration{$ELSE}framework 'SystemConfiguration'{$ENDIF};
procedure StoreKitLoader; cdecl; external {$IFDEF IOS32}libStoreKit{$ELSE}framework 'StoreKit'{$ENDIF};

end.



  • (delphi) copy the Delphi “iOSapi.FirebaseMessaging.pas” file to your project folder ( C:\Program Files (x86)\Embarcadero\Studio\22.0\source\rtl\ios\iOSapi.FirebaseMessaging.pas–> e:\progetti\myApp )
unit iOSapi.FirebaseMessaging;

{*******************************************************}
{                                                       }
{            CodeGear Delphi Runtime Library            }
{                                                       }
{ Copyright(c) 2010-2021 Embarcadero Technologies, Inc. }
{                  All rights reserved                  }
{                                                       }
{*******************************************************}

interface

uses
  Macapi.ObjectiveC,
  iOSapi.CocoaTypes, iOSapi.Foundation;

const
  FIRMessagingErrorUnknown = 0;
  FIRMessagingErrorAuthentication = 1;
  FIRMessagingErrorNoAccess = 2;
  FIRMessagingErrorTimeout = 3;
  FIRMessagingErrorNetwork = 4;
  FIRMessagingErrorOperationInProgress = 5;
  FIRMessagingErrorInvalidRequest = 7;
  FIRMessagingMessageStatusUnknown = 0;
  FIRMessagingMessageStatusNew = 1;
  FIRMessasingAPNSTokenTypeUnknown = 0;
  FIRMessasingAPNSTokenTypeSandbox = 1;
  FIRMessasingAPNSTokenTypeProd = 2;

type
  FIRInstanceIDAPNSTokenType = NSInteger;
  FIRMessagingAPNSTokenType = NSInteger;
  FIRMessagingError = NSUInteger;
  FIRMessagingMessageStatus = NSInteger;

  TFIRMessagingConnectCompletion = procedure(error: NSError) of object;

  FIRMessagingMessageInfoClass = interface(NSObjectClass)
    ['{FDAC534F-3D79-4FF6-824E-50DC7423662A}']
  end;

  FIRMessagingMessageInfo = interface(NSObject)
    ['{4D70F5C5-3635-405F-895C-F41C8D1FD76B}']
    function status: FIRMessagingMessageStatus; cdecl;
  end;
  TFIRMessagingMessageInfo = class(TOCGenericImport<FIRMessagingMessageInfoClass, FIRMessagingMessageInfo>) end;

  FIRMessagingRemoteMessageClass = interface(NSObjectClass)
    ['{EF45D074-C7A5-4DB2-BCD1-53B8650419F4}']
  end;

  FIRMessagingRemoteMessage = interface(NSObject)
    ['{6E2F8E14-FD8D-4B5D-8026-A607BE0B8F9C}']
    function appData: NSDictionary; cdecl;
  end;
  TFIRMessagingRemoteMessage = class(TOCGenericImport<FIRMessagingRemoteMessageClass, FIRMessagingRemoteMessage>) end;

  FIRMessaging = interface;

  FIRMessagingDelegate = interface(IObjectiveC)
    ['{264C1F0E-3EA9-42AC-9802-EF1BC9A7E321}']
    procedure applicationReceivedRemoteMessage(remoteMessage: FIRMessagingRemoteMessage); cdecl;
    [MethodName('messaging:didReceiveMessage:')]
    procedure didReceiveMessage(messaging: FIRMessaging; remoteMessage: FIRMessagingRemoteMessage); cdecl;
    [MethodName('messaging:didRefreshRegistrationToken:')]
    procedure didRefreshRegistrationToken(messaging: FIRMessaging; fcmToken: NSString); cdecl;
    [MethodName('messaging:didReceiveRegistrationToken:')]
    procedure didReceiveRegistrationToken(messaging: FIRMessaging; fcmToken: NSString); cdecl;
  end;

  FIRMessagingClass = interface(NSObjectClass)
    ['{62AF9A4C-681E-4BCD-9063-6209CAE08296}']
    {class} function messaging: pointer; cdecl;
  end;

  FIRMessaging = interface(NSObject)
    ['{A721C3D4-82EB-4A7B-A5E5-42EF9E8F618E}']
    function APNSToken: NSData; cdecl;
    procedure connectWithCompletion(handler: TFIRMessagingConnectCompletion); cdecl;
    function delegate: Pointer; cdecl;
    procedure disconnect; cdecl;
    procedure sendMessage(msg: NSDictionary; receiver: NSString; messageID: NSString; ttl: Int64); cdecl;
    procedure setAPNSToken(apnsToken: NSData; tokenType: FIRMessagingAPNSTokenType); cdecl;
    procedure setDelegate(delegate: Pointer); cdecl;
    function shouldEstablishDirectChannel: Boolean; cdecl;
    procedure setShouldEstablishDirectChannel(value: Boolean); cdecl;
    procedure subscribeToTopic(topic: NSString); cdecl;
    procedure unsubscribeFromTopic(topic: NSString); cdecl;
  end;
  TFIRMessaging = class(TOCGenericImport<FIRMessagingClass, FIRMessaging>) end;

  function kFIRInstanceIDTokenRefreshNotification: NSString; cdecl;

implementation

uses
  iOSapi.FirebaseCommon,
  Macapi.Helpers;

function kFIRInstanceIDTokenRefreshNotification: NSString;
begin
  Result := StrToNSStr('com.firebase.iid.notif.refresh-token');
end;

procedure FirebaseInstanceIDLoader; cdecl; external  'FirebaseInstanceID';
procedure FirebaseMessagingLoader; cdecl; external  'FirebaseMessaging';
procedure ProtobufLoader; cdecl; external 'Protobuf';

end.
  • Delete from the files the writing “{$ IFNDEF IOS32} framework {$ ENDIF}” (directive to the compiler) from the two files just mentioned
  • Include the Embarcadero libraries for managing pushes via FCM in the main project form
interface

uses xxxx
  ,System.PushNotification


  {$IFDEF ANDROID},FMX.PushNotification.Android {$ENDIF}
  {$IFDEF IOS}

       , FMX.PushNotification.iOS
       , FMX.PushNotification.FCM.iOS


  {$ENDIF}

..
..
..
uses System.NetEncoding,
{$IFDEF IOS}
  ,iOSapi.Foundation
  ,iOSapi.CoreTelephony
{$ENDIF}

{$IFDEF ANDROID}
  ,Androidapi.Helpers,
  Androidapi.JNIBridge,
  Androidapi.Jni,
  Androidapi.JNI.JavaTypes,
  FMX.Platform.Android,
  Androidapi.JNI.Os,
  FMX.Helpers.Android


{$ENDIF}
;
  • We define in the form the methods of managing the notification reception and the connection change, we also use the onclick event “btnInitializePushClick” of a button “btnInitializePush” to perform the initialization of the notification management. The interface is managed in this demo by a “memoLog” Tmemo
      TfmxMain = class(TForm)
    ....
  private
    { Private declarations }
    o : TMyBridgeObject;

    // PUSH NOTIFICATION ID
    FDeviceId: string;
    FDeviceToken: string;

    function HandleAppEvent(AAppEvent: TApplicationEvent; AContext: TObject): Boolean;

    procedure btnInitializePushClick(Sender: TObject);

    {$IF (defined(ANDROID)) OR (defined(IOS))}

    procedure OnServiceConnectionChange(Sender: TObject; PushChanges: TPushService.TChanges);
    procedure OnReceiveNotificationEvent(Sender: TObject; const ServiceNotification: TPushServiceNotification);

    {$ENDIF}

  public
    { Public declarations }
    ....

  end;
  • We implement the method that manages the receipt of notifications
    {$IF defined(ANDROID) OR defined(IOS)}
procedure TfmxMain.OnReceiveNotificationEvent(Sender: TObject;
  const ServiceNotification: TPushServiceNotification);
var
  MessageText: string;
begin
  MemoLog.Lines.Add('-----------------------------------------');
  MemoLog.Lines.Add('DataKey = ' + ServiceNotification.DataKey);


  MemoLog.Lines.Add('Json = ' + ServiceNotification.Json.ToString);
  MemoLog.Lines.Add('DataObject = ' + ServiceNotification.DataObject.ToString);
  MemoLog.Lines.Add('---------------------------------------');
end;


procedure TfmxMain.OnServiceConnectionChange(Sender: TObject;
  PushChanges: TPushService.TChanges);
var
  PushService: TPushService;
begin
  PushService := TPushServiceManager.Instance.GetServiceByName
    (TPushService.TServiceNames.FCM);
  if TPushService.TChange.DeviceToken in PushChanges then
  begin
    FDeviceToken := PushService.DeviceTokenValue
      [TPushService.TDeviceTokenNames.DeviceToken];
    MemoLog.Lines.Add('Firebase Token: ' + FDeviceToken);
//    Log.d('Firebase device token: token=' + FDeviceToken);
  end;
  if (TPushService.TChange.Status in PushChanges) and
    (PushService.Status = TPushService.TStatus.StartupError) then
    MemoLog.Lines.Add('Error: ' + PushService.StartupError);
end;
{$ENDIF}
  • Push initiation via the button “click” event:
  • procedure TfmxMain.btnIniutializePushClick(Sender: TObject);
{$IF (defined(ANDROID) OR defined(IOS))}

 var
   PushService: TPushService;
   ServiceConnection: TPushServiceConnection;
   Notifications: TArray<TPushServiceNotification>;
 begin
   PushService :=
       TPushServiceManager.Instance.GetServiceByName(TPushService.TServiceNames.FCM);
   ServiceConnection := TPushServiceConnection.Create(PushService);
   ServiceConnection.Active := True;
   ServiceConnection.OnChange := OnServiceConnectionChange;
   ServiceConnection.OnReceiveNotification := OnReceiveNotificationEvent;

   FDeviceId :=
       PushService.DeviceIDValue[TPushService.TDeviceIDNames.DeviceId];
   MemoLog.Lines.Add('DeviceID: ' + FDeviceId);
   MemoLog.Lines.Add('Ready to receive!');

   // Checks notification on startup, if application was launched fromcold start
   // by tapping on Notification in Notification Center
   Notifications := PushService.StartupNotifications;
   if Length(Notifications) > 0 then
   begin
       MemoLog.Lines.Add('-----------------------------------------');
       MemoLog.Lines.Add('DataKey = ' + Notifications[0].DataKey);
       MemoLog.Lines.Add('Json = ' + Notifications[0].Json.ToString);
       MemoLog.Lines.Add('DataObject = ' +
       Notifications[0].DataObject.ToString);
       MemoLog.Lines.Add('-----------------------------------------');
   end;


 end;
{$ELSE}
 begin

 end;
{$ENDIF}

    Step 3: Configure the project on firebase:

  • Add the app to the project by clicking on “Add App” and download the GoggleService-Info.plist file to your Delphi project directory.

  • In the settings section you have to upload the APN certificate that you previously generated on the apple portal in the “Keys” section and upload it to:





At this point, compile the application and run it on your device.

Inside memoLog you will find a JSON containing the deviceID, you have to copy it to test sending the first message from firebase.



Step 5) Send a test push message from the firebase console or your server



Copy the server key and perform a rest call as follows:



The JSON must also contain the “notification” object if you want the notification to arrive even when your app is not active:



{
    "to": "d-fmNb_zQ6u39hIOXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
    "priority" : "high",
    "message_id":"2205",
    "time_to_live": 200,
    "notification":{
      "title":"Portugal vs. Denmark",
      "body":"great match!"
    },
    "data":{
        "body":"Ciao",
        "title":"Cisco"
    }
}

that’s all













Categorie

Synaptica srl
P.IVA 05830520960

Sede legale Via Carducci 41/C 20098 San Giuliano Milanese (MI) - Capitale sociale € 20.000

© 2025
